D 400 Wind Generator, Sail-Gen, Duo-Gen & Off Grid StealthGen

D-400 KIT* On sale now - 12v $2,680, 24v $2,780

*KIT includes, regulator, diversion load, main fuse and brake switch

J Gordon & Co Inc is the US importer for the line of wind and water generators by Eclectic Energy

J Gordon & Company offers sales, service and installation of wind, combination wind & Water and water generators made by Eclectic Energy.

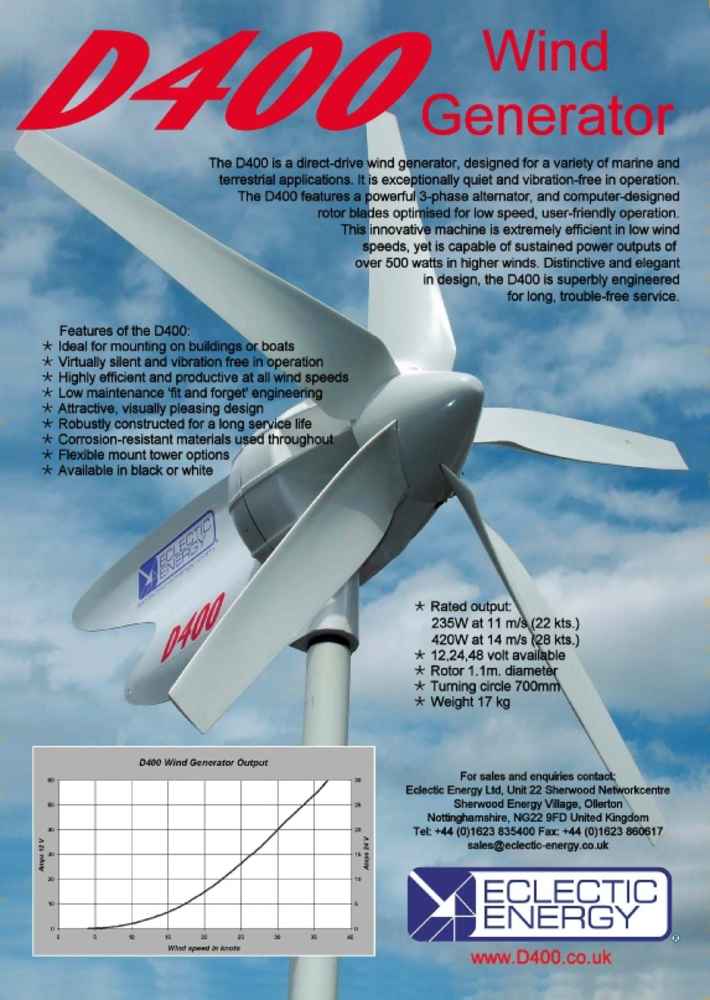

Advantages of the D-400

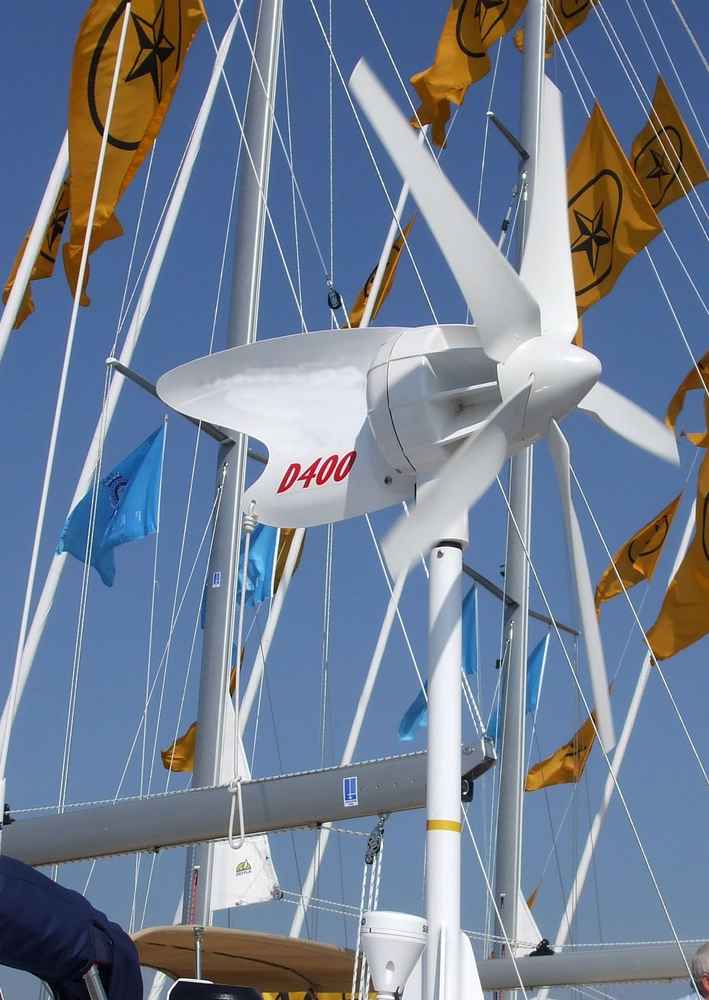

Research of several models indicates that the average cost of the engine typically found in a sailboat equipped with a high output alternator and regulator including maintenance amortized over 10 years is about $1200.00 per year. The D400 is a wind generator, designed for a variety of marine, rooftop or terrestrial applications. It is exceptionally quiet and vibration-free in operation, qualities that are of paramount importance for any wind generator operating in close proximity to people.
The D400 features a powerful 3-phase alternator, and computer-designed rotor blades optimized for low speed, user-friendly operation.

This innovative machine is extremely efficient in low wind speeds, yet is capable of sustained high power outputs of 500 watts and more in higher winds

Distinctive and elegant in design, the D400 is superbly engineered for long, trouble-free service, and is available in either 12,24,48 and 72 volt variants. Price may be increased for the higher voltage models.

Output Guide:
10 knots wind speed produces 40 watts
15 knots wind speed produces 120 watts
20 knots wind speed produces 190 watts
25 knots wind speed produces 280 watts
32 knots wind speed produces 400 watts

NOTE: These figures are representative of performance at sea level when operating in an open, turbulence-free site.

Call 410-263-0054 to order your D-400 or for more information. You can also click here to Contact us.

Kato Wind generator poles

We have had great success with the KATO poles for our installations. These poles are well built and are not difficult to install. We can also provide these poles as a package when you purchase the D-400 system. KATO Marine is well known for their quality marine stainless steel frabrication in poles, davits, lifts, solar brackets and most any kind of mounts or brackets you may need. KATO MARINE

D-400 Manual / trouble shooting

D-400 Manual

Trouble shooting tips

D400 Drive Shaft and bearing replacement

Poor Yaw Action

Short video on assembling a D-400

Sail-gen

Dedicated Water Generator for Cruising Yachts

Producing electricity on passage is an increasingly major consideration for the cruising yachtsman. With on-board refrigeration, autopilot, radar and many other electrical appliances, typical power consumption when under way can be around 200 amp hours per day or more.

As batteries should not be routinely discharged beyond 50% of their capacity, this level of load will flatten a 400 amp hour battery bank in 24 hours necessitating many hours of running an engine or generator daily to re-charge.

The Sail-Gen water generator dispenses with this by producing electricity as you sail and is easily capable of matching or exceeding the yacht’s power consumption.

The Sail-Gen shares the same operating principal as the DuoGen’s water mode, which is well proven over hundreds of thousands of sea miles. The Sail-Gen has the same geometry as the DuoGen and also utilises the same alternator, water impeller and drive train.

The Sail-Gen comprises a rigid welded aluminium frame with carbon fibre drive shaft and cast alloy impeller. It is compact in size and both reliable and efficient in operation. At typical passage speeds (5 – 6 knots) the Sail-Gen is capable of matching power consumption, freeing the owner from engine runs to charge batteries.

The Sail-Gen is direct-drive, i.e. 1:1 ratio impeller to alternator. There is no gearbox to wear and add friction.
The Sail-Gen’s alternator is not submerged, and is therefore less liable to failure through water ingress.
The Sail-Gen’s running depth is controlled by a ‘hydro foil’ or ‘dive plane’. This means that the water impeller flies through the wave action at a constant depth and is not directly affected by the pitching movement of the yacht, as occurs with the ‘outboard leg’ type generator.
The impeller running depth can be optimised by a simple adjustment of the dive plane angle.
The dive plane prevents the water impeller from surfacing in all but the most extreme situations.
The Sail-Gen dive plane is active, and moves to a positive angle as tension is applied to the recovery lanyard. This makes recovery simple and easy, regardless of boat speed.
An impact wire can be fitted to move the dive plane positive in the event of a collision with floating debris. This allows the Sail-Gen to ride over the obstructions, minimising any damage.
The Sail-Gen is built using high quality, corrosion-resistant materials, including cast aluminium impellers, carbon fibre driveshaft and a welded aluminium frame. The aluminium is hard anodised, followed by a polyester powder coat.
The slow speed, permanent magnet alternator is robust, highly efficient and well proven. Featuring stainless steel shaft and bearings, powerful ferrite magnets and heavy copper windings, this unit is capable of sustained outputs in excess of 500 watts.
The Sail-Gen is supplied complete with an alternator yoke and ‘c’ bracket. Together, these form the gimballed mount for the Sail-Gen and allow the unit to pivot both vertically and horizontally when deployed.
The ‘c’ bracket should be attached to the yacht within 500mm of the centre line, and with height options of either 392mm or 532mm above the static water line. The ‘c’ bracket can be through-bolted to the transom. In some cases additional brackets may be required to facilitate the installation.
In its ‘parked’ position when not in use, the Sail-Gen is held in a vertical position by a frame clip supplied with and integral to the mount hardware.
The Sail-Gen is supplied in either 12 or 24 volt variants. A standard 280mm diameter impeller is available for yachts with passage speeds up to 9 knots. A high-speed 240mm diameter impeller is recommended for boats capable of speeds up to 15 knots.
To prevent battery damage through overcharging, we recommend that a charge regulator forms part of the installation. This should be a ‘dump’ type regulator rated at a minimum of 40 amps at 12 volts.
Drag and the resulting speed loss from water generators are often over-stated. Drag from the Sail-Gen is less than 15 kg at 6 knots, and typical boat speed losses at that speed are in the order of a tenth of a knot or less.
The Sail-Gen weighs 16.7 kg excluding mounting.

Duo-Gen

StealthGen

Grid-tie Dedicated Wind Generator

The StealthGen Wind Generator is a new direct-drive wind generator, designed for a variety of microgeneration applications. It is exceptionally quiet and vibration-free in operation, qualities that are of paramount importance for any wind generator operating in close proximity to people. The StealthGen features a powerful 3-phase alternator, and computer-designed rotor blades optimised for low speed, user-friendly operation.

This innovative machine is extremely efficient in low wind speeds, yet is capable of sustained power outputs of over 500 watts in higher winds.

It is small and light enough to be easily attached to most building structures. Given average wind speeds at the site of around 12 mph, one D400 StealthGen could realistically provide 15 – 20% of the average home’s annual electricity requirement.

Inexpensive to purchase and virtually silent in operation, once installed the StealthGen is no more conspicuous than a satellite dish.

Distinctive and elegant in design, the StealthGen is superbly engineered for long, trouble-free service, and is available in 12, 24, 48,72 or 150 volt grid-connect variant.

Due to the StealthGen’s low cost, it is perfectly feasible to install several machines.

Environmental:

Small wind turbines sited within the urban environment have the potential to make a significant contribution to the attainment of fuel poverty and carbon abatement targets.

Eclectic Energy Limited has worked closely with INREB Faraday, the NGO tasked with the development of these technologies.

Conventional wisdom has largely precluded the mounting of wind generators on buildings due to the unacceptable noise and vibration associated with such installations. Eclectic and its research partners have overcome these problems in the development of the D400 and StealthGen technology.
